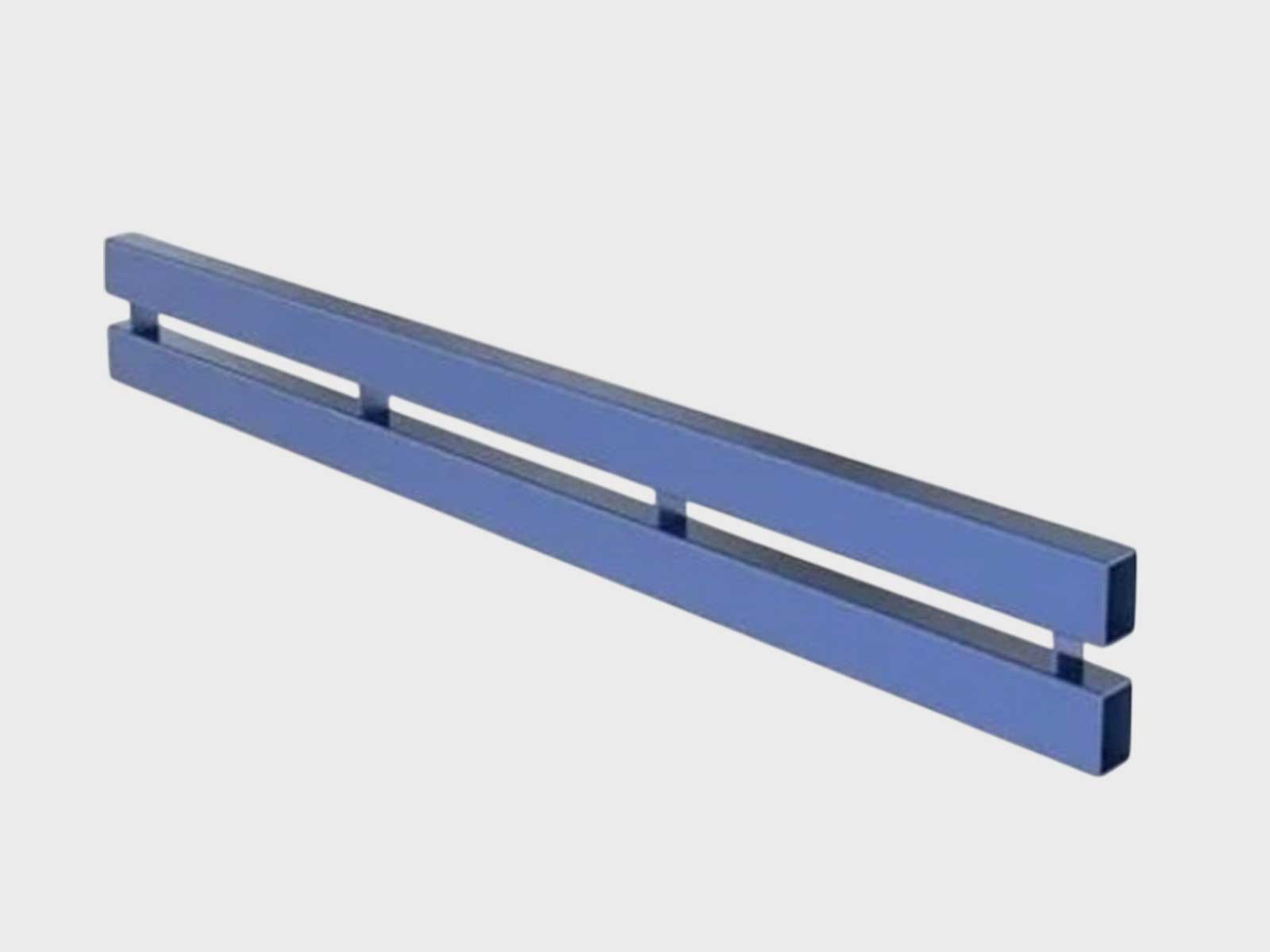

The Support Waller is a structural bracing component used in Mivan and modular formwork systems to horizontally support and align formwork panels during wall and slab construction. Fabricated from 50x50 mm square steel tubing with 2.5 mm wall thickness, the support waller ensures proper spacing, rigidity, and stability of the formwork under concrete pressure. It serves as a mounting base for accessories like waller clamps, vertical soldiers (VS), and bracing rods.
Features
- Size: 50x50 mm square profile
- Thickness: 2.5 mm
- Material: High-grade mild steel
- Provides strong and stable horizontal support to formwork panels
- Easy integration with waller clamps, tie systems, and vertical soldiers
- Reusable and built for long-term durability
- Straight and uniform for consistent formwork alignment
- Available in standard lengths or customized as per project requirements
- Surface finish options: painted, powder-coated, or galvanized
Applications
- Mivan and Aluminum Formwork Systems – As horizontal alignment support
- RCC Wall and Slab Forming – Helps resist lateral concrete pressure
- Mass Housing and High-Rise Projects – Ideal for fast, repetitive construction cycles
- Infrastructure Projects – Used in tunnel, retaining wall, and bridge formwork setups
- Precast and In-Situ Construction – Ensures proper panel positioning and concrete finish quality
