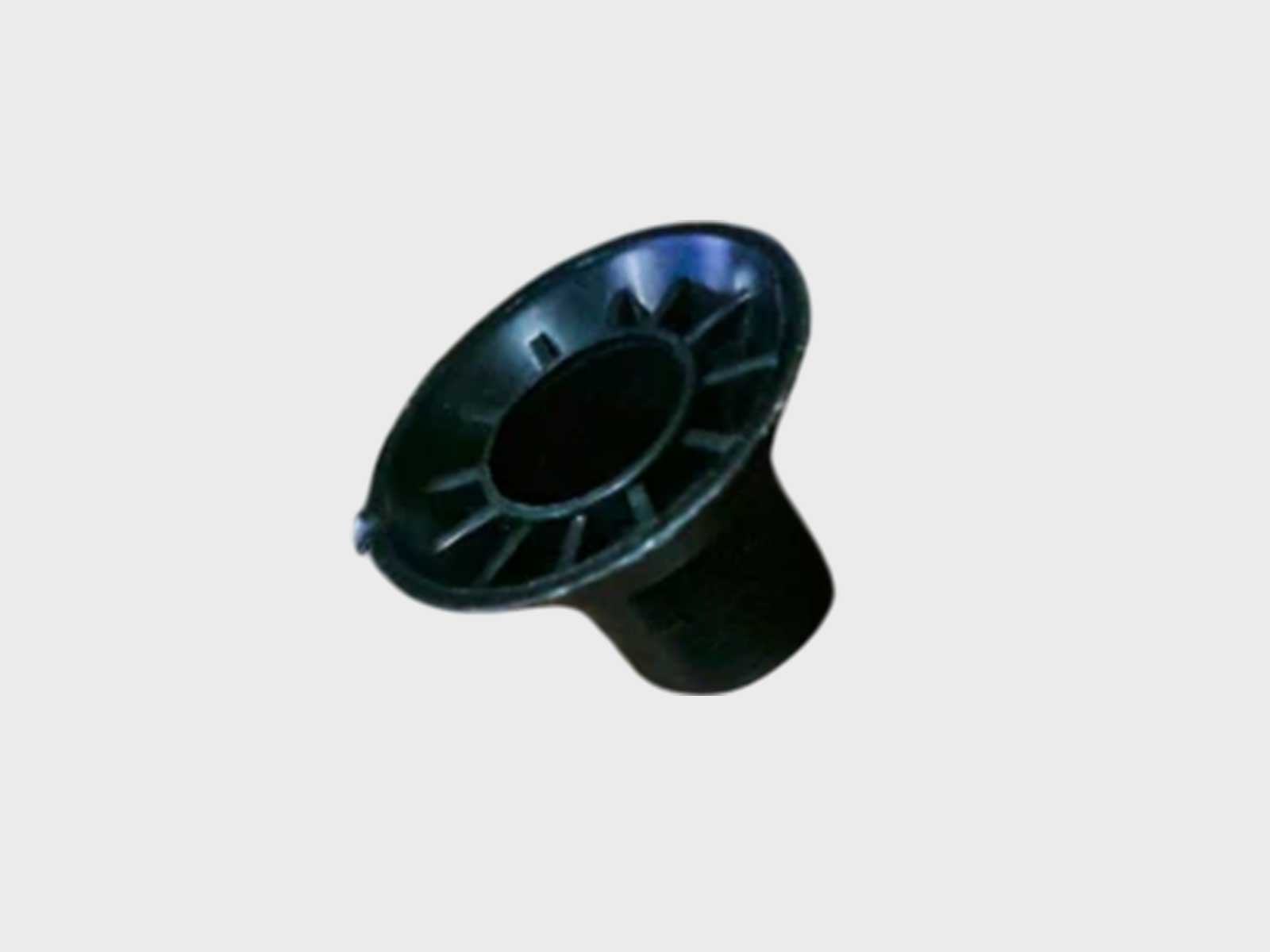

The PVC Cone (22 mm I.D.) is a key accessory in tie rod and formwork systems, used in combination with hard sleeves and tie rods to create a clean, precise recess at both ends of the wall after concrete casting. This cone also acts as a spacer and sealing point, ensuring that concrete does not enter the sleeve and allowing easy removal of the tie rod. Made from high-grade PVC, it is lightweight, durable, and reusable.
Features
- Internal Diameter: 22 mm – suitable for 16 mm tie rods with hard sleeves
- Durable PVC Construction – High impact resistance and weatherproof
- Precision Fit – Ensures correct alignment and smooth finish at tie rod exit points
- Reusable Design – Can be used multiple times with proper care
- Prevents Concrete Leakage – Seals the ends of the sleeve effectively
- Easy to Install and Remove – Snap-in or push-fit into sleeves
- Corrosion-Free – Unlike metal components, it will not rust or degrade
Applications
- Mivan and Traditional Formwork Systems – Used in wall shuttering with tie rods
- Concrete Wall Casting – Creates a clean and consistent cavity at the tie rod exit
- Retaining Walls, Shear Walls, Core Walls – Ensures easy tie rod removal after casting
- Reusable Formwork Assembly – Works with hard sleeves and wing nuts in modular shuttering
- Precast Concrete Molds – Helps in maintaining precise voids and prevents concrete seepage into sleeves
