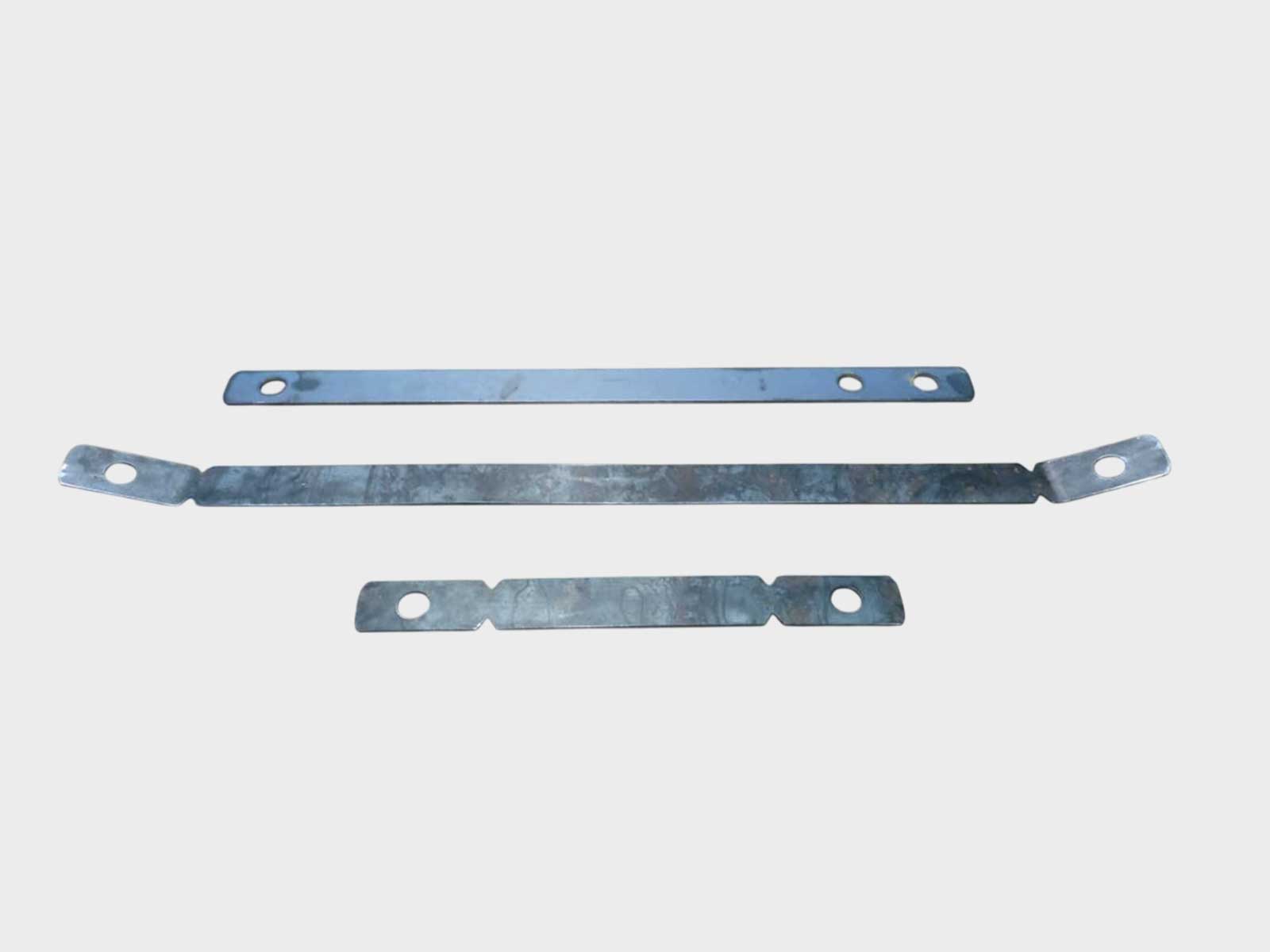

Our Wall Ties are essential components for Mivan and traditional formwork systems, used to hold two opposite wall formworks together and resist the lateral pressure of wet concrete during casting. Available in custom sizes as per your project needs, these wall ties come in thicknesses ranging from 2 mm to 3 mm, widths from 32 mm to 42 mm, and lengths suitable for 75 mm to 600 mm thick walls. Manufactured in a variety of materials, wall ties are designed based on your required load-bearing capacity and reuse frequency.
Features
- Customizable Sizes – Length, width, and thickness can be tailored as per wall thickness and structural load
- Reusable Design (for Reusable Wall Ties) – Built for multiple use cycles, reducing material costs
- Embedded Type Available – One-time use wall ties for permanent embedment in concrete
- Strong & Durable – Manufactured using high-strength steel or alloy as per load requirements
- Corrosion Resistant Options – Available with zinc-plating or powder coating
- Accurate Concrete Spacing – Ensures precise wall thickness and prevents bulging
Applications
- Mivan/Aluminum Formwork Systems – To align and hold wall panels during concrete casting
- Reinforced Concrete Wall Construction – Supports opposing formwork under concrete pressure
- Infrastructure Projects – High-rise, commercial, and industrial structures requiring precision casting
- Temporary and Permanent Formwork – Reusable wall ties for temporary formwork; embedded ones stay in concrete
- Heavy Load Zones – Available in higher gauge for areas with heavy concrete pressure
