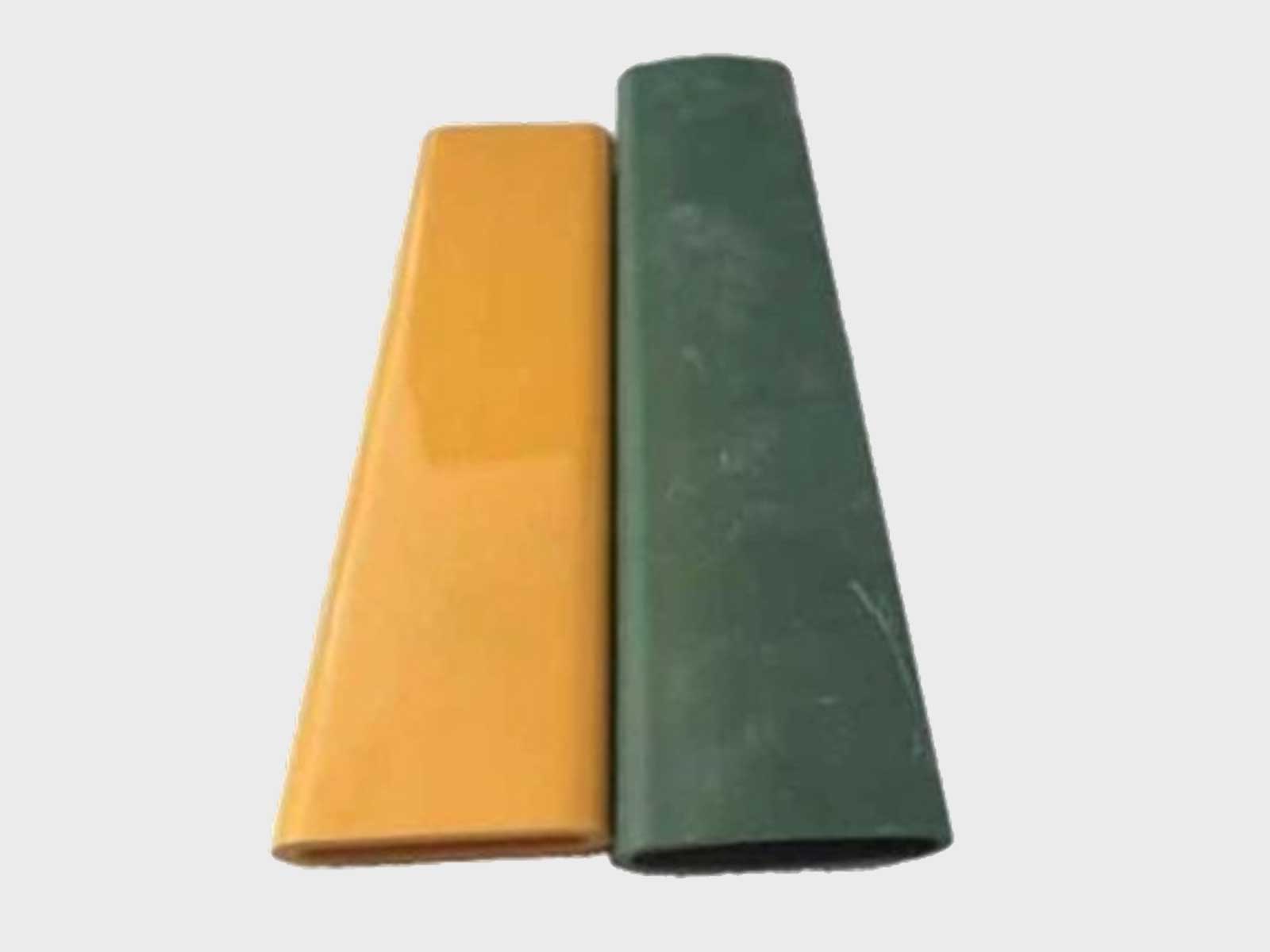

The Hard Sleeve is a durable and essential component used in conjunction with tie rods in concrete formwork systems. Designed to maintain the exact spacing between wall formwork panels, it ensures uniform wall thickness and prevents concrete from bonding to the tie rod. Hard Sleeves are manufactured from high-strength plastic (PVC or HDPE) and are available for 100 mm, 150 mm, and 200 mm thick wall applications. These sleeves enhance reusability and simplify tie rod removal post-concreting.
Features
- Made from rigid, high-grade plastic (PVC or HDPE)
- Available sizes for 100 mm, 150 mm, and 200 mm wall thickness
- Ensures accurate spacing between formwork panels
- Prevents concrete leakage and sticking around tie rods
- Reusable in multiple casting cycles
- Compatible with standard 16 mm tie rods
- Lightweight and easy to install and remove
Applications
- Mivan and Conventional Formwork Systems
- High-rise Residential & Commercial Construction
- RCC Wall Casting – Helps in maintaining specified wall thickness
- Formwork Alignment – Used along with tie rods and cones
- Concrete Structures – Beams, columns, and shear walls requiring tie rod systems
